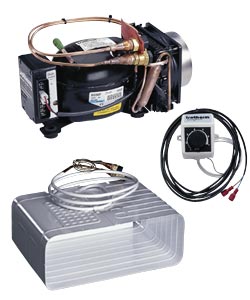

Isotherm Compact Classic 2501 200L Air-Cooled Refrigeration Kitset

The Isotherm Compact Classic 2501 is a high-capacity, air-cooled refrigeration system designed to convert large insulated compartments into efficient refrigerators or freezers. Ideal for marine and mobile applications, this system is perfect for those requiring substantial cooling capabilities.

Key Features:

• Large Cooling Capacity: Capable of refrigerating compartments up to 200 litres.
• Large 'O' Shaped Evaporator: Features a sizable O-shaped evaporator measuring 270mm x 380mm x 140mm, providing efficient cooling and the option to create a small freezer section within the refrigeration space.
• Danfoss BD50F Compressor: Equipped with the robust and reliable Danfoss BD50F compressor, known for its efficiency and durability in demanding conditions.
• Air-Cooled System: Utilizes a fan-assisted air-cooled condenser, ensuring effective heat dissipation. Proper ventilation is essential; ensure cool air can enter from below and warm air can escape from the top.
• 12/24V DC Compatibility: Designed to operate seamlessly with 12V or 24V DC power systems, making it versatile for various marine and mobile power setups.

• Optional upgrades for 115/230v

• Quick-Connect Installation: Comes with 2.5 meters of pre-charged piping and quick-connect couplings, simplifying the installation process and allowing for easy maintenance without significant refrigerant loss.

• Thermostat Control: Includes a mechanical thermostat with an ON/OFF switch, allowing precise temperature adjustments to suit your cooling needs.

Specifications:

• Cooling Capacity: Up to 200L as a refrigerator.
• Evaporator Dimensions: 270mm (W) x 380mm (H) x 140mm (D).
• Compressor Dimensions: 295mm (W) x 160mm (H) x 155mm (D).
• Power Consumption: Average of 0.9 A/h at 12V; maximum of 3.5 A at 12V.
• Weight: Approximately 9 kg.
• Refrigerant: R134a, an ozone-friendly refrigerant.

Installation Recommendations:

• Ventilation: Ensure the compressor compartment is well-ventilated, allowing cool air to enter from below and warm air to escape from the top, optimizing the air-cooled system's efficiency.
• Insulation: For optimal performance, install the system in a well-insulated compartment to maintain desired temperatures and reduce energy consumption.
• Mounting: Utilise the included mounting bracket with a click-on lock for secure and straightforward installation.

The Isotherm Compact Classic 2501 offers a reliable and adaptable refrigeration solution, perfect for applications requiring larger cooling capacities without compromising on efficiency or ease of installation.
