Isotherm GE80 Compact Classic Refrigeration Kitset

Isotherm GE80 Compact Classic Kitset

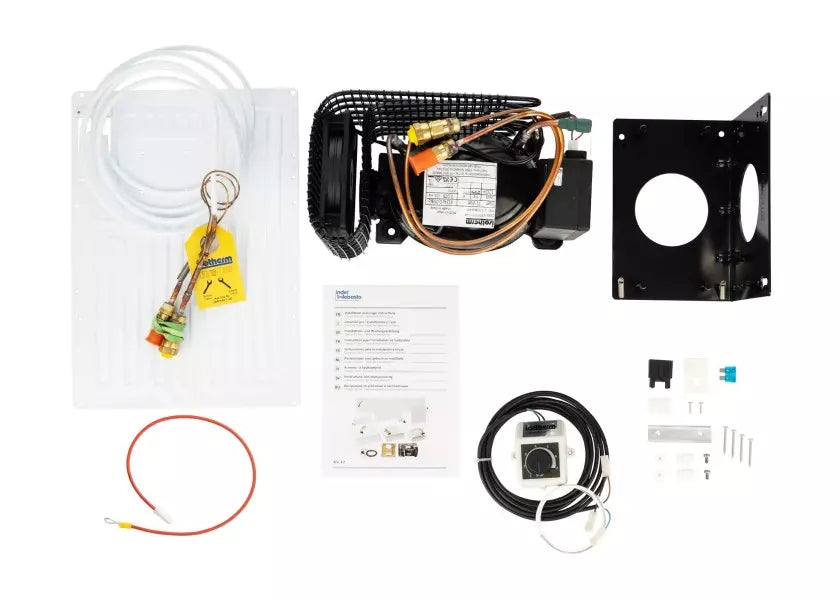

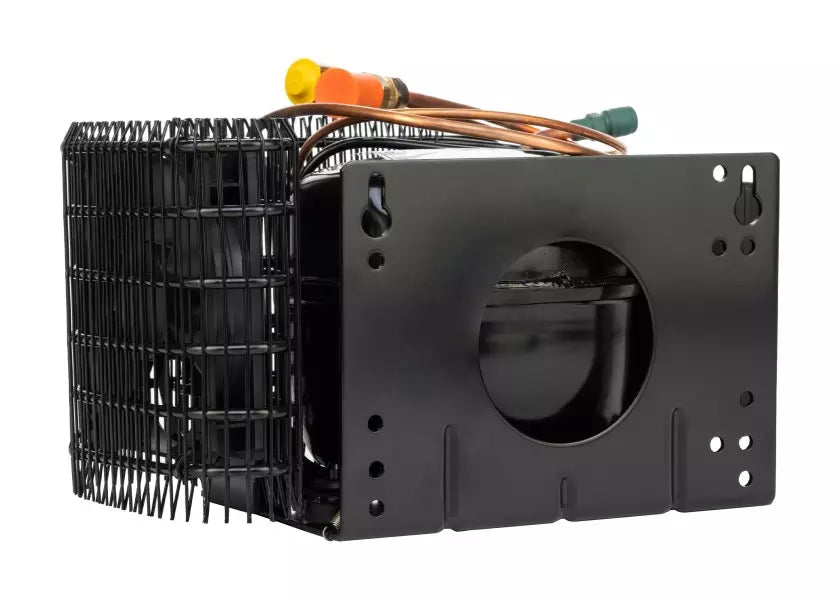

When standard refrigeration units aren’t suitable, a custom-built, all-in-one kit offers a perfect alternative. This air-cooled ice box conversion kit is designed to efficiently refrigerate spaces up to 80L. The unit comes pre-charged and is ready for installation with quick-connect fittings and 6' of flexible copper refrigerant lines, simplifying the setup process.

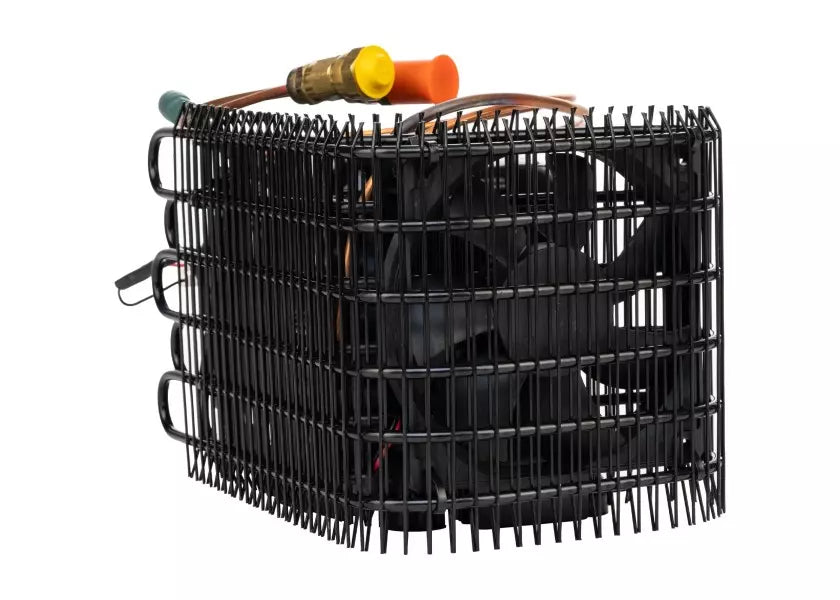

The system operates on 12/24V DC, providing a powerful, energy-efficient solution that operates quietly. The compressors use a classic method of cooling by blowing air through the condenser via a fan to expel heat. It’s essential for the compressor compartment to be well-ventilated, with cool air entering from the bottom and hot air exiting from the top.

Main Features:

• Flat evaporator plate that can be shaped to fit your space

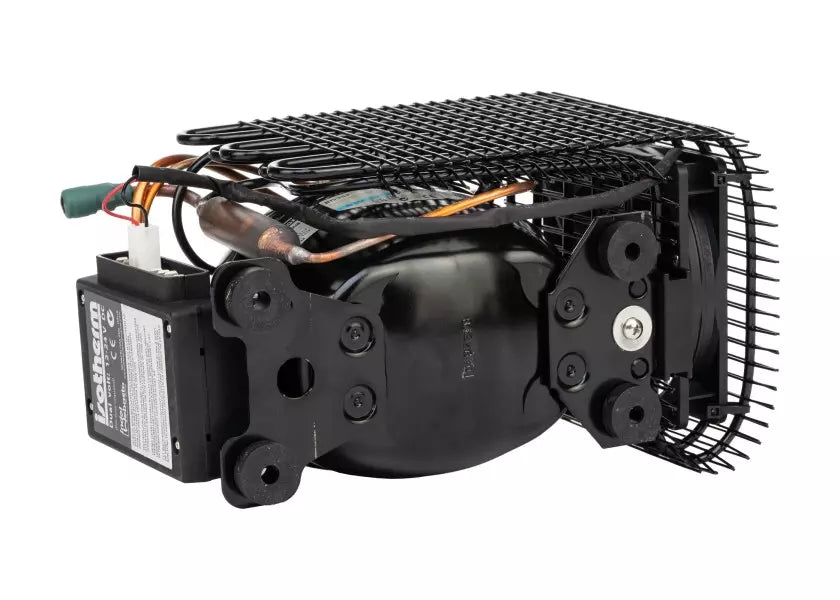

• Air-cooled compressor

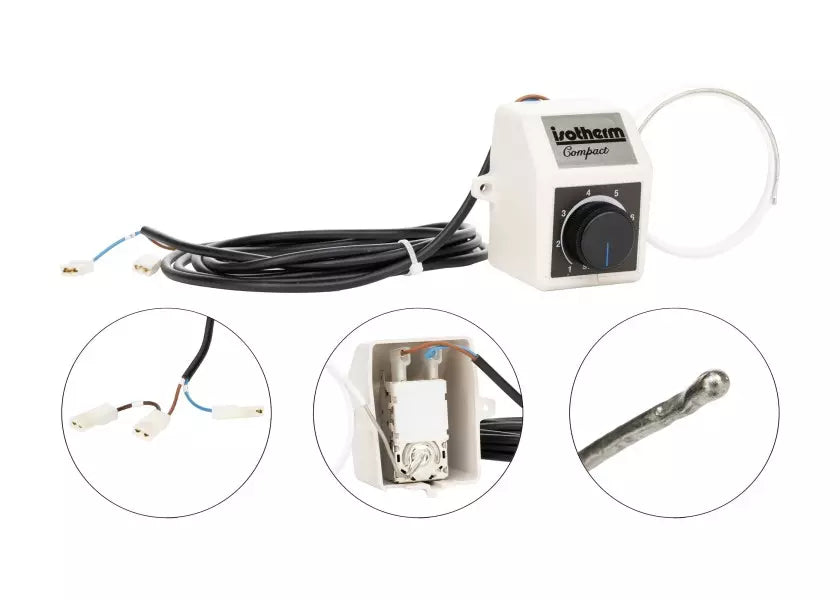

• Built-in thermostat for easy temperature control
• Mounting bracket included
• Ideal for cooling up to 80L of fridge space

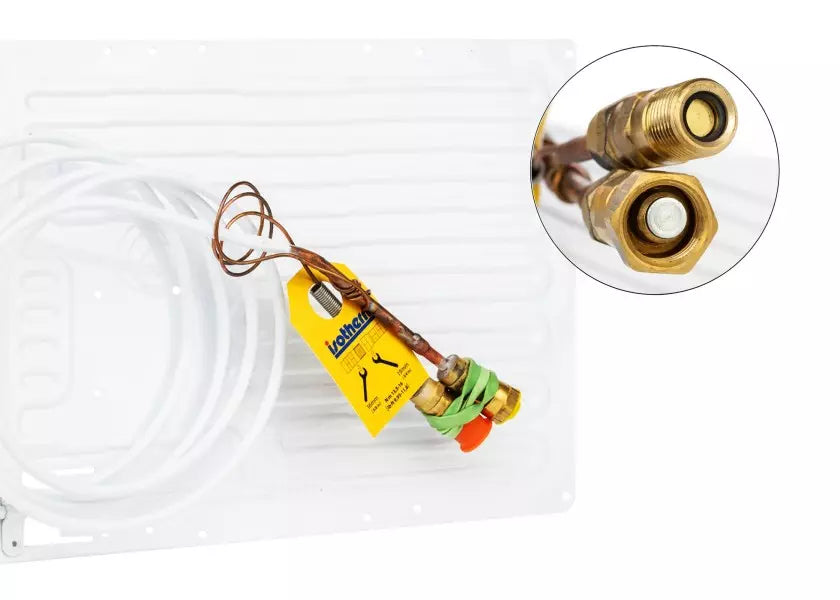

• Pre-charged system with quick-connect fittings for easy installation

Technical Specifications:

• Voltage: 12/24V

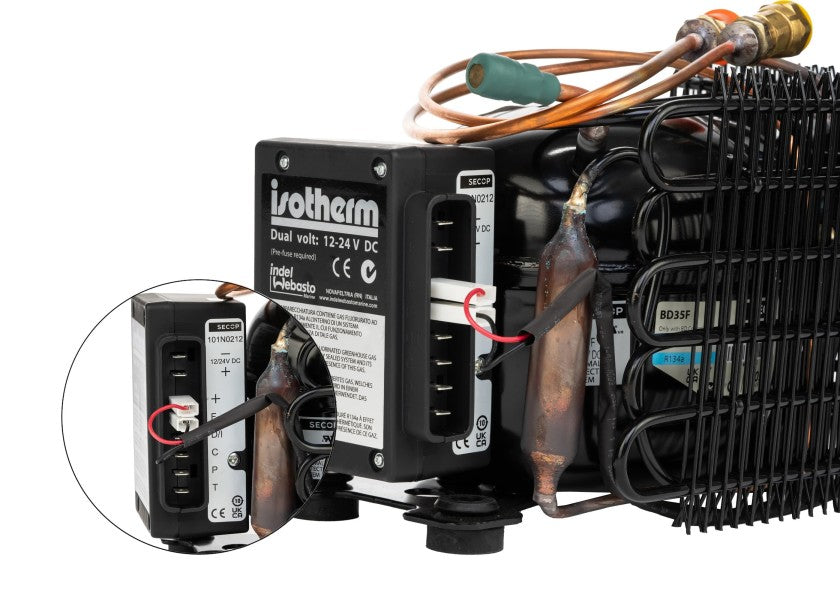

• Compressor: Danfoss BD35F

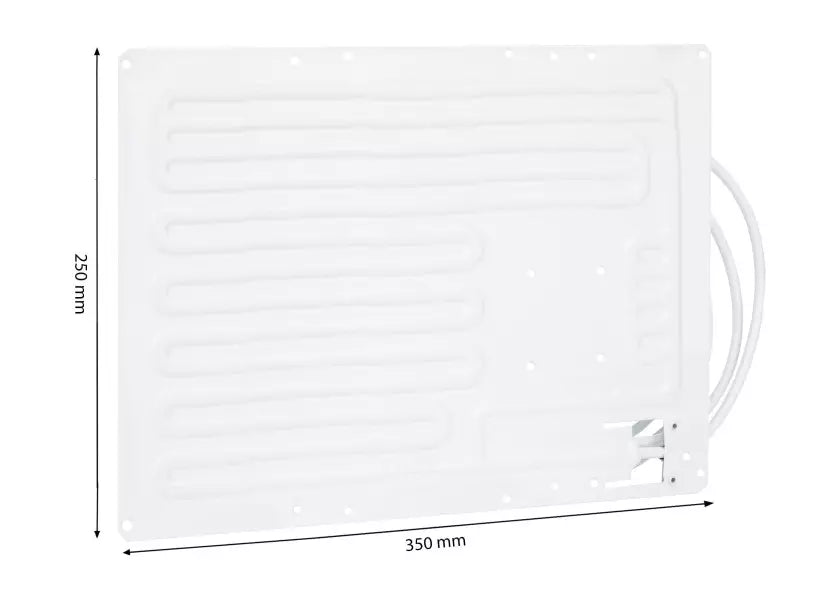

• Flat evaporator dimensions (mm): 350 x 250
• Compressor dimensions (mm): 270L x 160W x 155H
• Weight: 30 kg
• Built-in Dimensions (mm): 523h x 530w x 568d
• Product Dimensions (mm): 480h x 515w x 563d

This refrigeration solution is designed to keep your insulated space at a consistent temperature. The BD35F compressor and flat evaporator work together to provide efficient cooling, ideal for use in new or existing ice boxes or refrigerators. The evaporators are compact and flexible, allowing them to be molded to the shape of your storage space for a more even distribution of cool air.

These units are simple to maintain, as the system allows for easy disconnection of components without releasing the coolant, thanks to the quick-connect fittings. With a compact installation requirement of only a 30 mm hole for mounting, it’s a versatile and low-maintenance cooling solution. U080X000P11111AA
